Quick Details

  • Light Source: LED
  • Item Type: Spotlights
  • LED Light Source: CREE LED
  • Warranty(Years): 3
  • Input Voltage(V): 90-264VAC / 127-370VDC
  • Lamp Power(W): 60
  • Lamp Luminous Flux(lm): 120
  • Lamp Luminous Efficiency(lm/w): 87
  • CRI (Ra>): 85
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -40 - +60
  • Working Lifetime(Hour): 100000
  • Lamp Body Material: Aluminum Alloy
  • Certification: CCC, CE, RoHS
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Tormin
  • Model Number: BC9501
  • IP Code: IP66
  • Ex Code: Ex d II C T6 Gb
  • Ambient temp.: -40°C to +60°C
  • Standard: GB3836.1, GB3836.2 IEC60079-1:2007,MOD
  • Frequency: 50Hz / 60Hz
  • Anti corrosion grade: WF2
  • Insulation Grade: I
  • Spacing height ratio: 4.5
  • Dimension: 370x326x88mm
  • Net Weight: 6.5Kg

Packaging & Delivery

Packaging Details 1set/carton, 30*30*21.5cm,4.8kgs
Delivery Time 7-15days
25W 40W 60W, IP66 CE, RoHS, Explosion Proof LED projector lamp, Explosion Proof LED spotlight



Product Description

Application

  • Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.
  • Harsh environment, moist area.
  • Gas explosive environment: Group IIA; IIB.
  • Zone 1, Zone2; Zone 21, Zone 22.
  • Temperature class: T1 to T6.

Characteristics

  1. Customer can choose the 25°or 80°as the beam angle according to the application.
  2. The housing is especially designed to dissipate heat, so that to prolong lifespan of the LED, ensure 100,000hours service life.
  3. The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
  4. It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
  5. Equipped with Taiwan Meanwell top brand LED driver, ensuring the lamp have a stable performance.
  6. The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
  7. The lamp is flame proof type of protection, designed to be used in all kinds of explosive application.
  8. 18-43VAC or 18-55VDC is optional for 25W and 40W as customer's requirement.

Technical Specification

Input Voltage

90-264VAC / 127-370VDC

Frequency

50Hz / 60Hz

Anti corrosion grade

WF2

Insulation Grade

I

Spacing height ratio

4.5

Screw Thread

G3/4

Cable Diameter

Φ8mm14mm

Dimension

370x326x88mm

Net Weight

6.5Kg



 Product:


Packaging & Shipping

   1unit/carton 30*26.5*23mm;4.3kg


Our Services
  • reply you within 24h
  • professional sales and customer-servicedept.both work for you,high efficiency of communication
  • report order status every day
  • reliable after-sale service
  • OEM available

 Dialux Solution,telling you which iem,which power,how many pcs,which beam angle suitable

  1. dialux to check suitable item;
  2. recommend to customer;
  3. project done

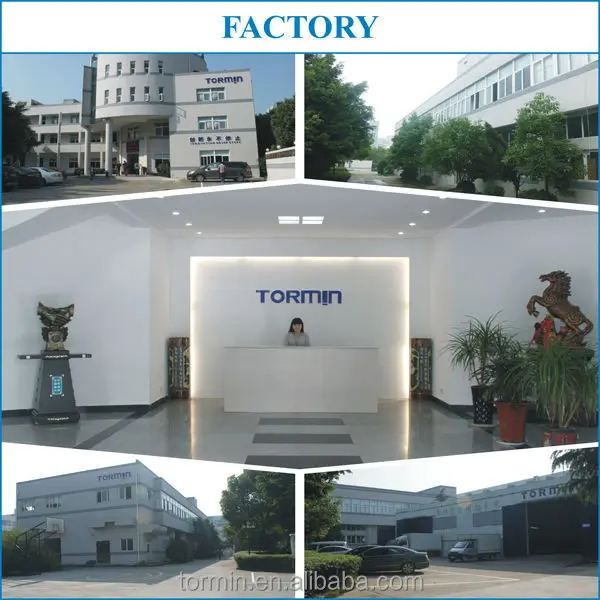

Company Information






FAQ

Q:What certification do you have for your LED Explosion proof lights?

A:We have ATEX, CE,EMC,LVD,RoHS, China Explosion proof approval for all of our LED explosion proof lights.


Q:What places do your explosion proof lights
applicable to?

A:It is ideal to be used as floodlight or spotlight at the oilfield,metallurgy,refinery,gas station,oil rig,petroleum,petrochemistry and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.


Q:
Can you introduce briefly for your LED Explosion proof lights? Are they unique, different from other
suppliers'?

A:Tormin's LED explosion proof lights are designed and patented independently by Zhejiang Tormin electrical Co.,Ltd. We ensure quality by using CREE LED chip, aluminium housing and tempered glass. We ensure safety by strict testing and inspectio
