Quick Details

  • Item Type: Explosion-proof Lights
  • Input Voltage(V): 90-305VAC
  • Lamp Power(W): 80
  • Lamp Luminous Flux(lm): 9168
  • Lamp Luminous Efficiency(lm/w): 115
  • CRI (Ra>): 85
  • Color Temperature(CCT): Pure White
  • Working Temperature(℃): -40 - +55
  • Working Lifetime(Hour): 100000
  • IP Rating: IP66
  • Certification: CCC, CE, EMC, LVD, RoHS
  • Lamp Body Material: Aluminum Alloy
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: TORMIN
  • Model Number: BC9101
  • LED Brand: CREE LED
  • Ingress protection: IP66
  • rated wattage: 25w 40w 60w 80w
  • light output: 3300Lm, 5412Lm, 8138Lm, 9168Lm
  • Ex code: Ex II 2 GB, Ex d II B T6
  • Frequency: 50Hz/60Hz
  • Warranty: 5 years
  • certificate: ATEX, CE, Explosion proof cerificate

Packaging & Delivery

Packaging Details 1unit/carton 38*42*14cm,gross weight:8.3kg

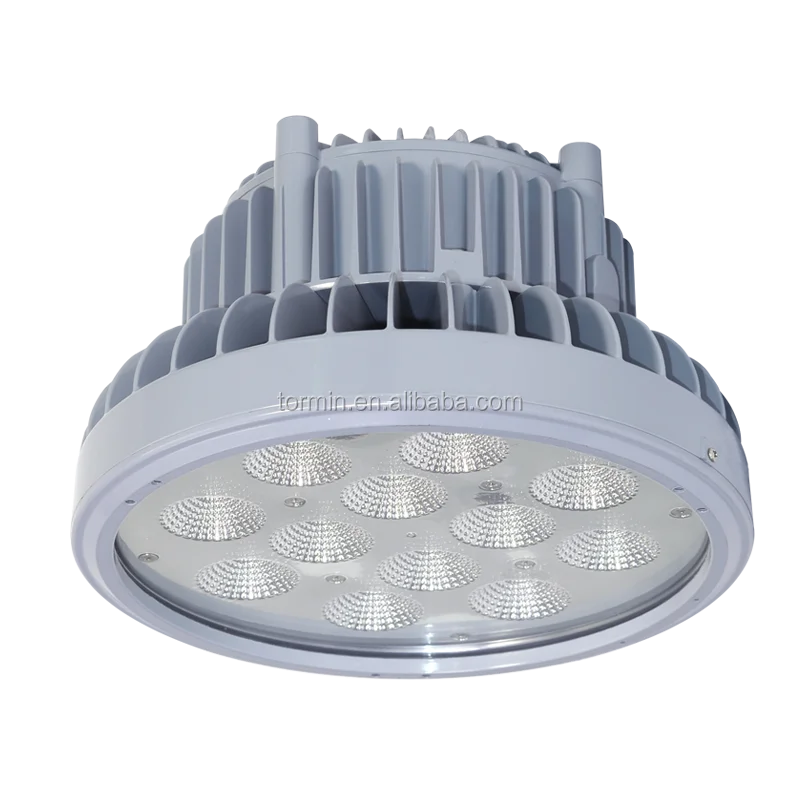

ATEX LED Explosion Proof Light Floodlight

Application

  • Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.
  • harsh environment, moist area.
  • Zone 1, Zone2
  • gas explosive environment : Group IIA IIB IIC
  • Zone 21, Zone 22
  • Temperature class: T1 to T6

Light Distribution Curve

Characteristics

  1. With its reflector which have different angles design, it efficiently utilize the light. Have a good performance of illuminance uniformity, glare free, can avoid eyestrain to the worker.
  2. It adopts American CREE LED as light source, can save 60% or more on energy than metal halide lamp.
  3. The housing is especially designed to dissipate heat, which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
  4. World top ranking Taiwan Meanwell LED Driver, power factor:0.98, has a highly stable performance.
  5. The adjustable locking device on the bracket can tightly fix the lamp to any desired angle, making the lamp resist to harsh vibration
  6. The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
  7. Multiple mounting options including ceiling mounting, pendent mounting, wall mounting etc.
  8. The lamp can parallel connected , no need to use the junction box.
  9.  AC18-43V or DC18-55V is optional for 25w and 40w as customer’s requirement.

Technical Specification

Input Voltage

90-305VAC / 127-431VDC

Frequency

50Hz / 60Hz

Anti corrosion grade

WF2

Insulation Grade

I

Spacing height ratio

4.5

Screw Thread

G3/4

Cable Diameter

Φ8mm14mm

Dimension

370x326x88mm

Net Weight

6.5Kg

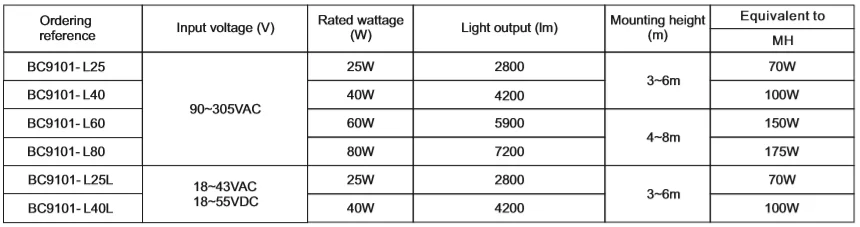

Ordering reference





 Model No.





Light Source





Rated Wattage(W)





luminous flux(Lm)

Equivalent to

Metal Halide Lamp

Electrodeless Lamp

Energy Saving Lamp

High Pressure Mercury Lamp

BC9101-L25

LED

   25

3300

70w

60w

80w

80w

BC9101-L40

LED

40

5412

100w

100w

130w

125w

BC9101-L60

  LED

60

8138

150w

135w

180w

175w

BC9101-L80

LED

80

9168

175w

165w

/

250w

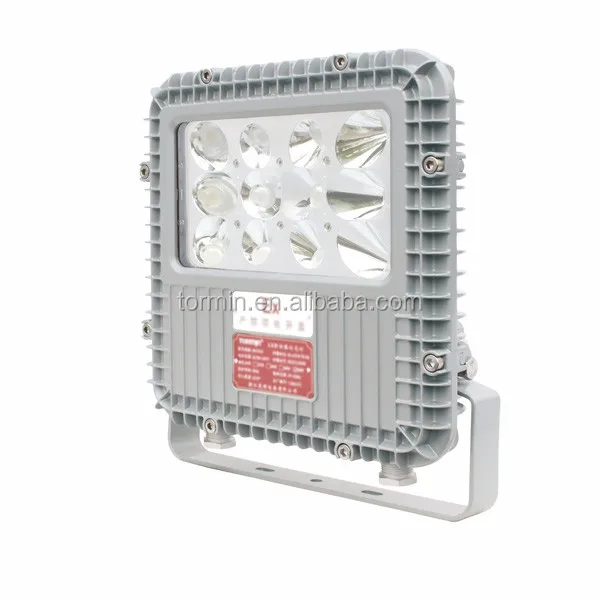

Explosion Proof LED Floodlight IP66 IECex ATEX Explosion Proof LED Light

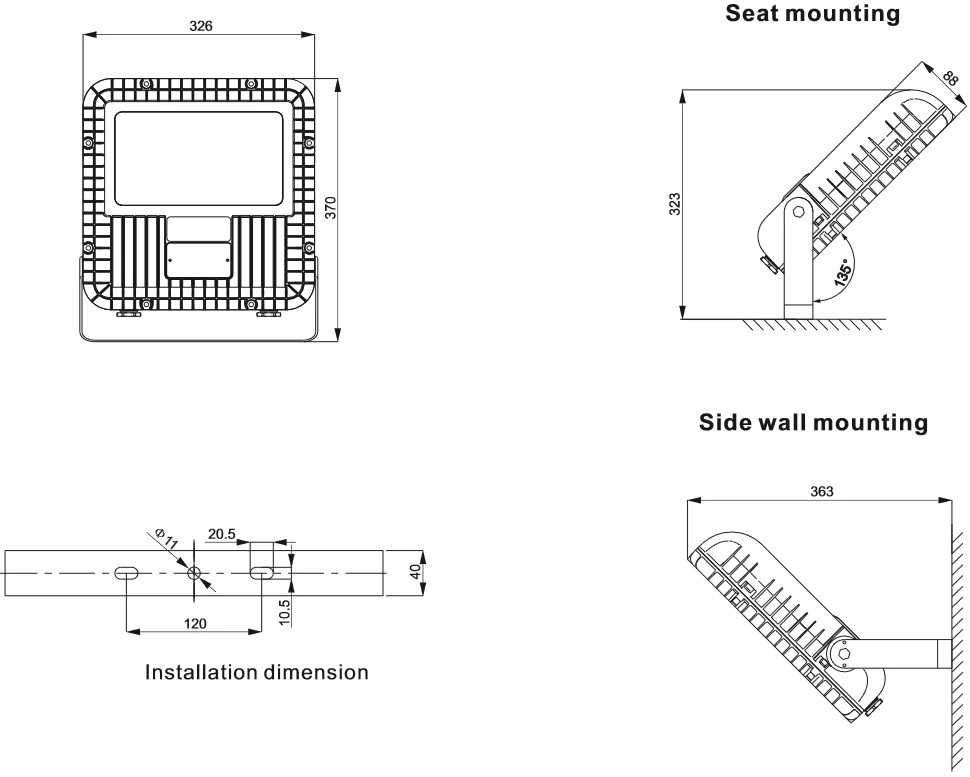

 Drawing and Mounting Options

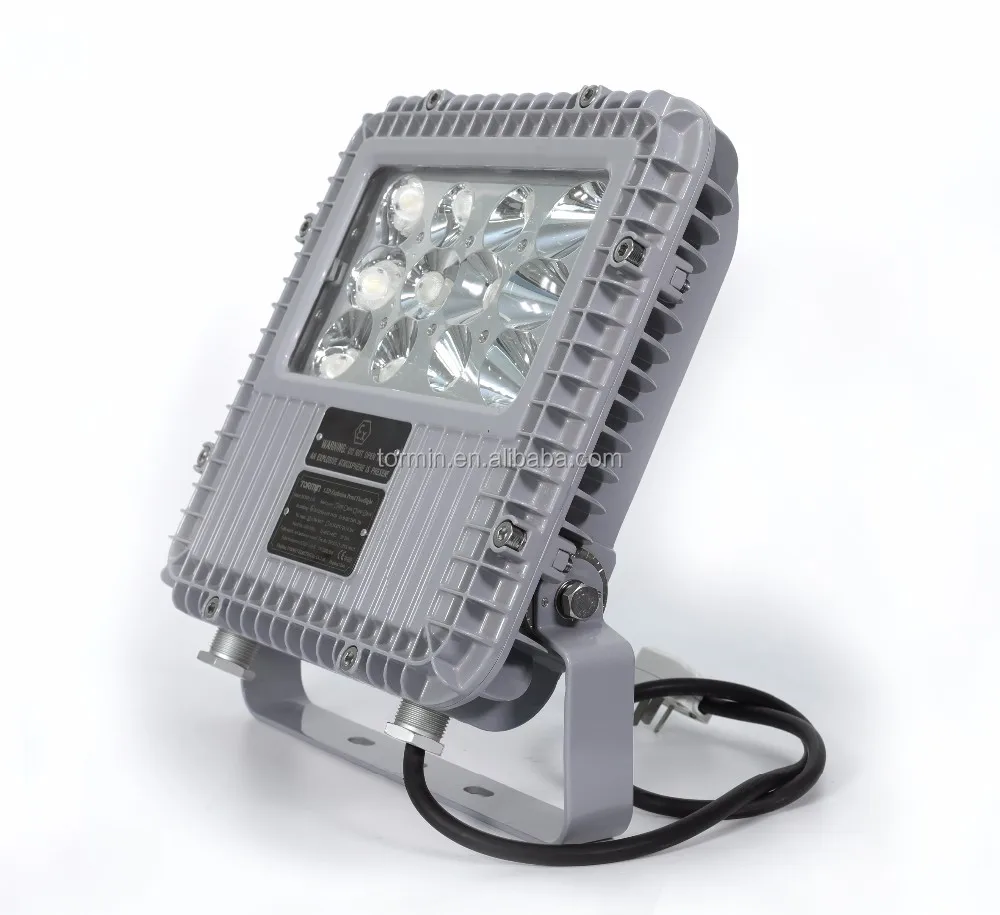

Display

The strong aluminium alloy body and LED lamp design give this lamp excellent durability and resistance to vibration and impact.

Two cable inlet holes.The lamp can parallel connected , no need to use the junction box.

Fin design for maximum thermal dissipation

 Equipped with adjustable locking device on the bracket that enables the operator to position lamp in any directions.

With its reflector which have different angles design, it efficiently utilize the light. Have a good performance of illuminance uniformity, glare free, can avoid eyestrain to the worker.

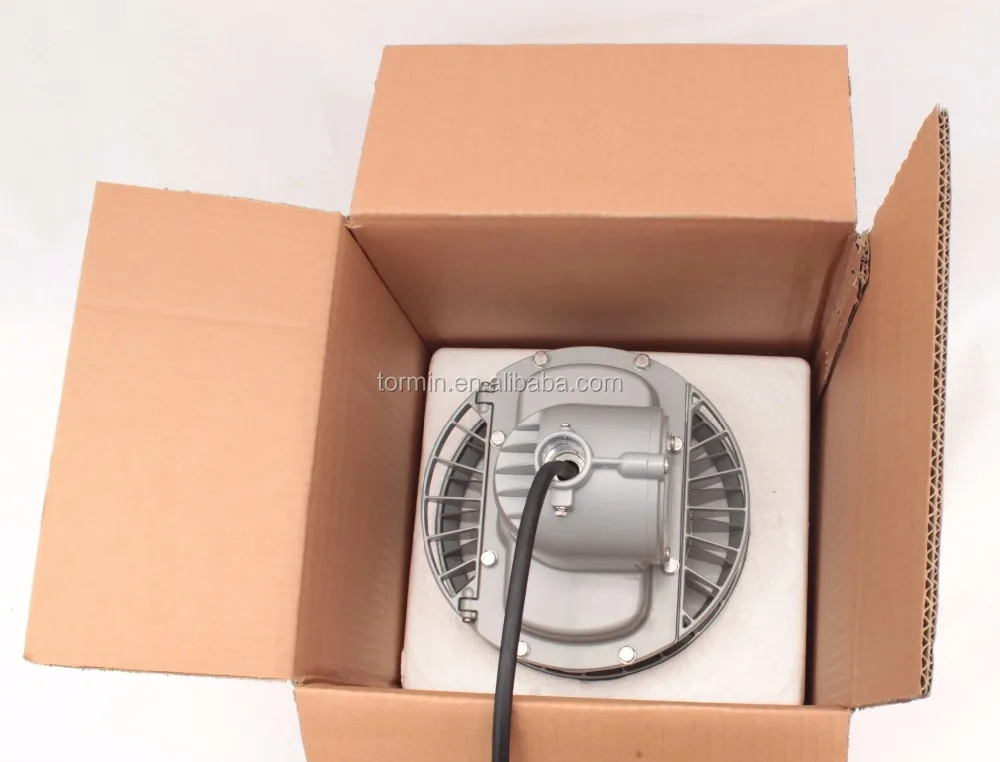

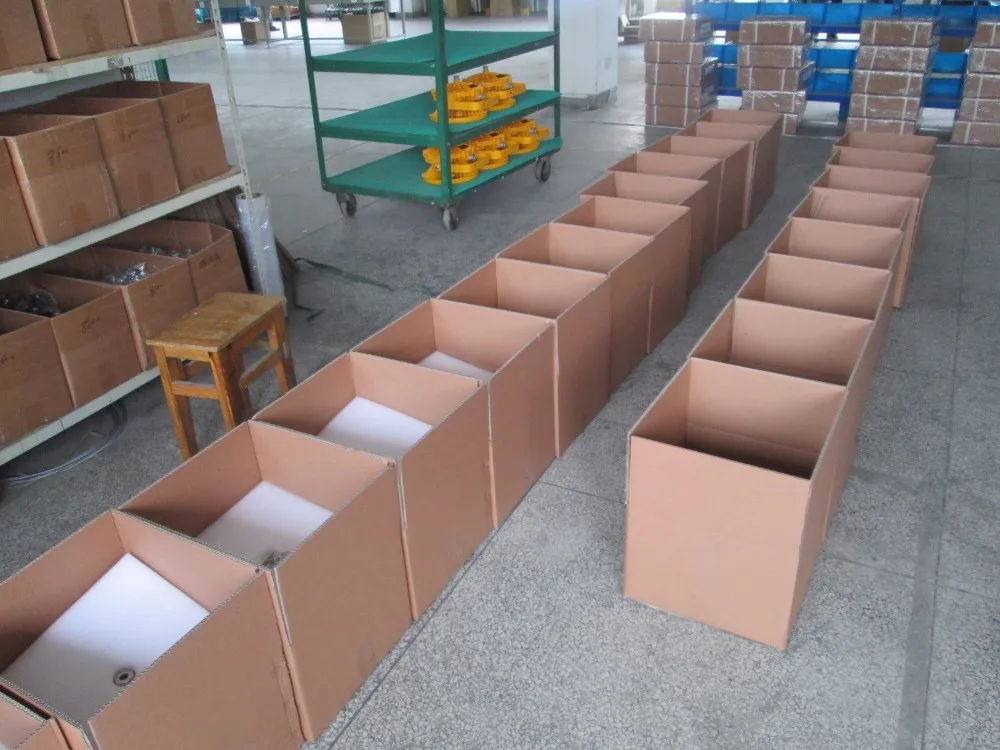

Packaging & Shipping

1unit/carton 38*42*14cm,gross weight:8.3kg


Our Services
  • reply you within 24h
  • professional sales and customer-servicedept.both work for you,high efficiency of communication
  • report order status every day
  • reliable after-sale service
  • OEM available

 Dialux Solution,telling you which iem,which power,how many pcs,which beam angle suitable

  1. dialux to check suitable item;
  2. recommend to customer;
  3. project done

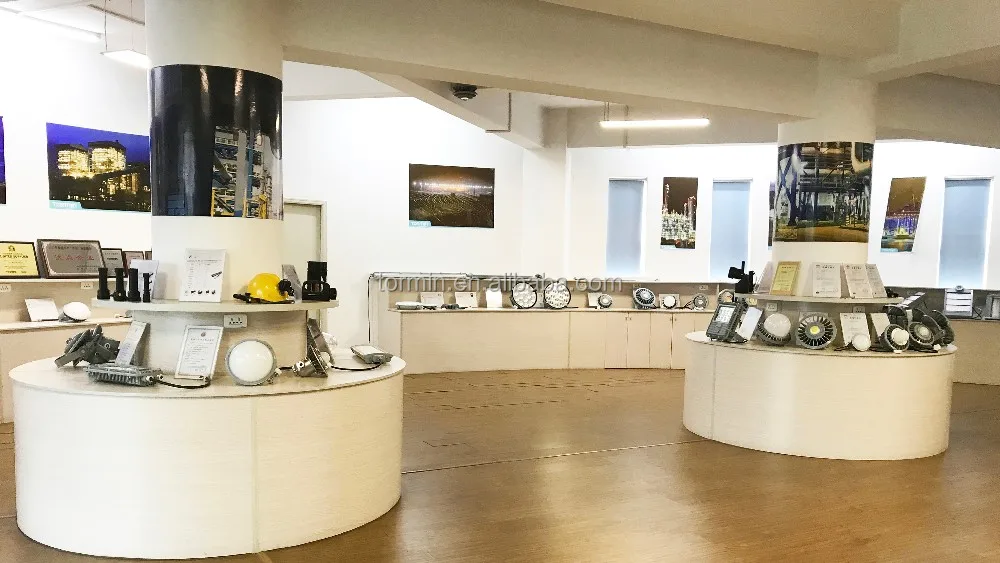

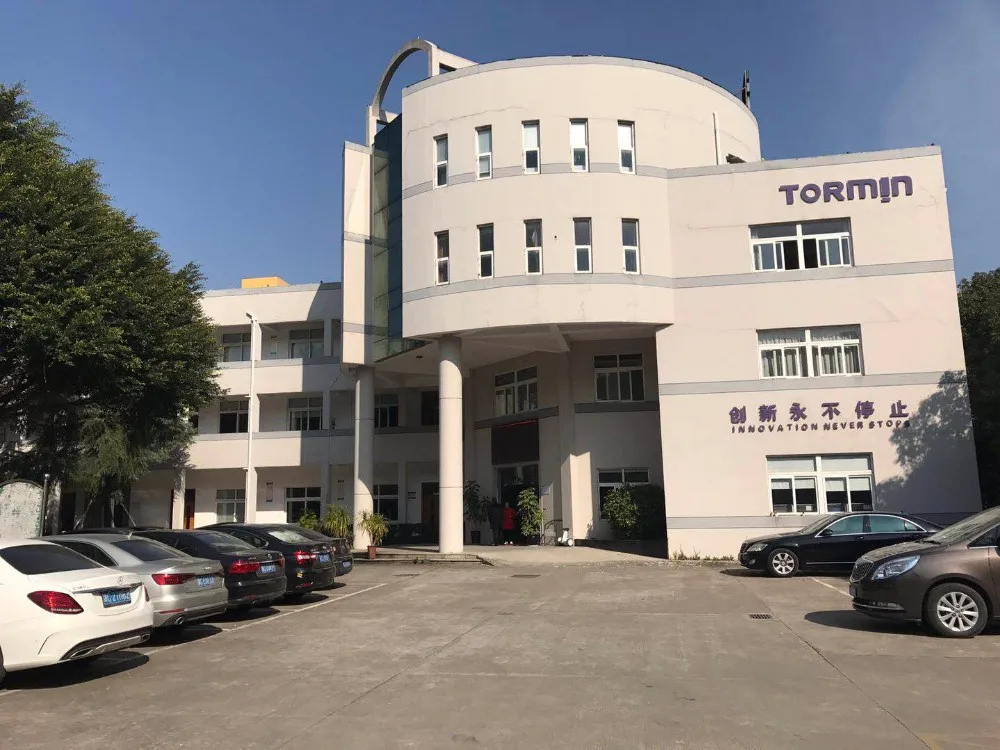

  Company Information











FAQ

Q:What certification do you have for your LED Explosion proof lights?

A:We have ATEX, CE,EMC,LVD,RoHS, China Explosion proof approval for all of our LED explosion proof lights.


Q:What places do your explosion proof lights
applicable to?

A:It is ideal to be used as floodlight or spotlight at the oilfield,metallurgy,refinery,gas station,oil rig,petroleum,petrochemistry and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.


Q:
Can you introduce briefly for your LED Explosion proof lights? Are they unique, different from other
suppliers'?

A: Tormin's LED explosion proof lights are designed and patented independently by Zhejiang Tormin electrical Co.,Ltd. We ensure quality by using Bridgelux LED chip, aluminium housing and tempered glass. We ensure safety by strict testing and inspection.
